Description

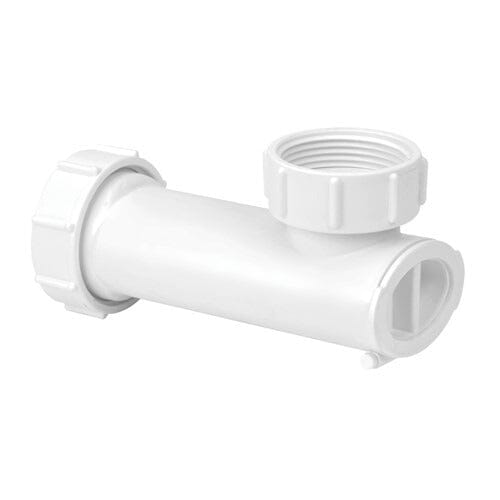

WHB-1 Space Saving Waste
Code: U5T-251-18
Wash Hand Basin Space Saver with Self-Closing Waste Valve
1¼" BSP female inlet nut x 1¼"
Universal compression outlet 1¼"
BSP female inlet nut x 1¼" u
Universal compression outlet designed to allow full use of storage space below the basin within the cabinet or furniture. The internal membrane opens under water pressure to allow discharge to flow freely and then closes to form a seal to prevent foul odour or sewer gas entering the building.
The valve allows air to be drawn into the discharge waste pipe when negative pressures occur and eliminates the need for secondary ventilation to the discharge pipework.
This allows for greater flexibility in the plumbing design.
Overall height 62mm
